Collaborative

SCARA Robots
Human CollaborationLab Equipment HandlingPick-and-Place
  • Excellent structural rigidity.
  • High response brushless servo motors.
  • Absolute encoders for instant readiness after power up.
  • Standard RS-232 and TCP/IP communication.
  • Advanced 32-bit real-time motion control kernel.
  • Comprehensive software tools and utilities.
  • User-friendly and intuitive interface.
  • General purpose digital inputs and outputs for custom use.
  • Meets ISO Force standards.
  • Extended reach with horizontal linear rail.

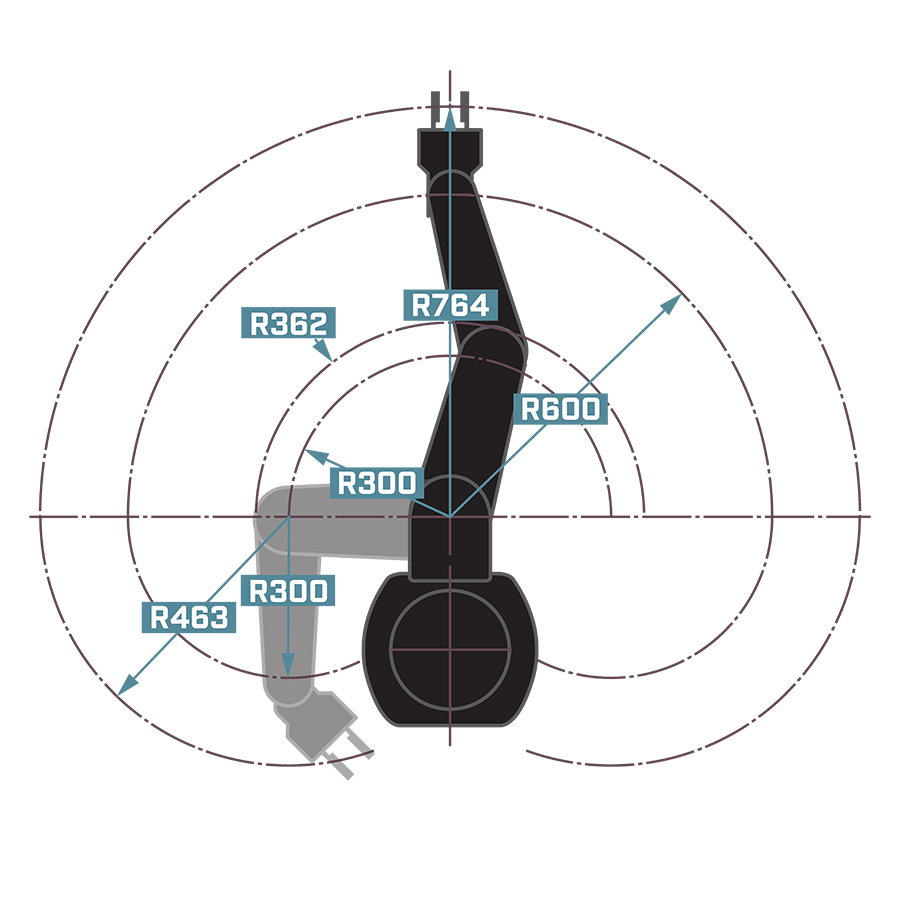

Range of Motion
Z - 490 mm
J1 - ±90 deg
J2 - ±180 deg
J3 - ±180 deg
Performance Max
Max Acceleration - 2 m/s²
Max Speed - 1 m/s
Max Payload - 3 kg*
(*including gripper)
Repeatability
± 100 μm
Input Voltage Range
100-240VAC
Operating Temperature
50ºF to 104ºF
10ºC to 40ºC
Encoder Type
Absolute
battery backup

Sim Automation provides automation solutions through reliable robotic industrial equipment. Our mission is to deliver the best and most effective products on the market.

Our four-axis SCARA robot is an elegant solution for repetitive pick-and-place tasks in “lights out” factories and laboratory environments.

For use in collaboration, our robot is capable of working side-by-side with people. The robot’s unique combination of speed/safety allows it to operate at full speed and deliver industrial throughput in applications where operators can move freely around the robot without concerns for their safety or impacting production.

The robot’s structural design is also compatible with tabletop applications. The controller and harnessing are embedded within the robot’s structure, eliminating external component installations.

Additionally, our intuitive interface is built in directly in the robot controller, requiring only a PC or tablet with WiFi and a web browser to operate the robot.
