Pick-and-Place

SCARA Robots
DispensingPick-and-PlaceScrew Driving & DrillingWelding & Gluing
  • Excellent structural rigidity.
  • High response brushless servo motors.
  • Absolute encoders for instant readiness after power up.
  • Standard RS-232 and TCP/IP communication.
  • Advanced 32-bit real-time motion control kernel.
  • Comprehensive software tools and utilities.
  • General purpose digital inputs and outputs for custom use.
  • Meets ISO Force standards.
  • User-friendly and intuitive interface.

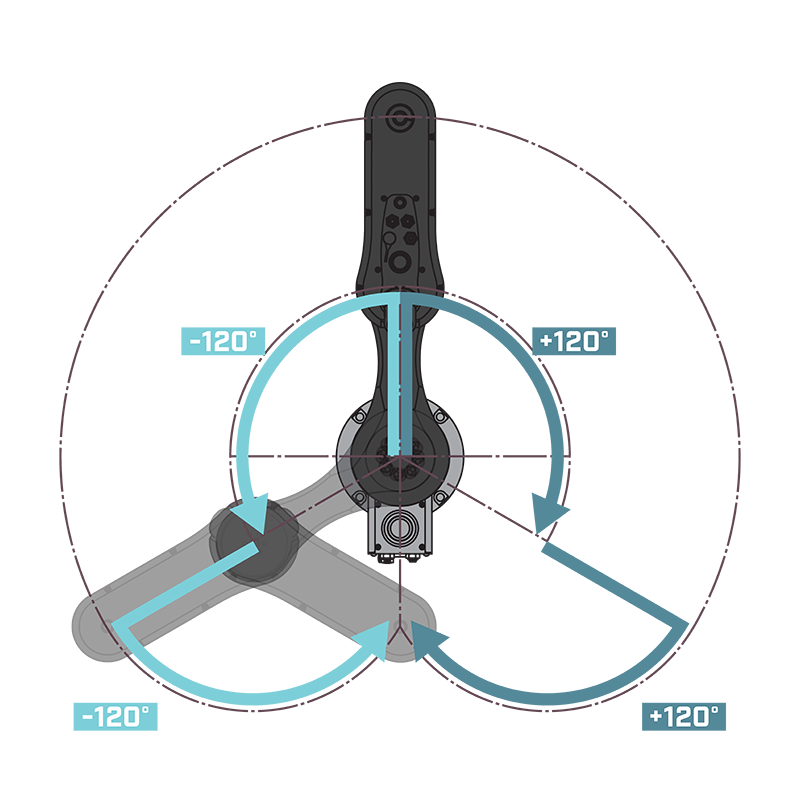

Range of Motion

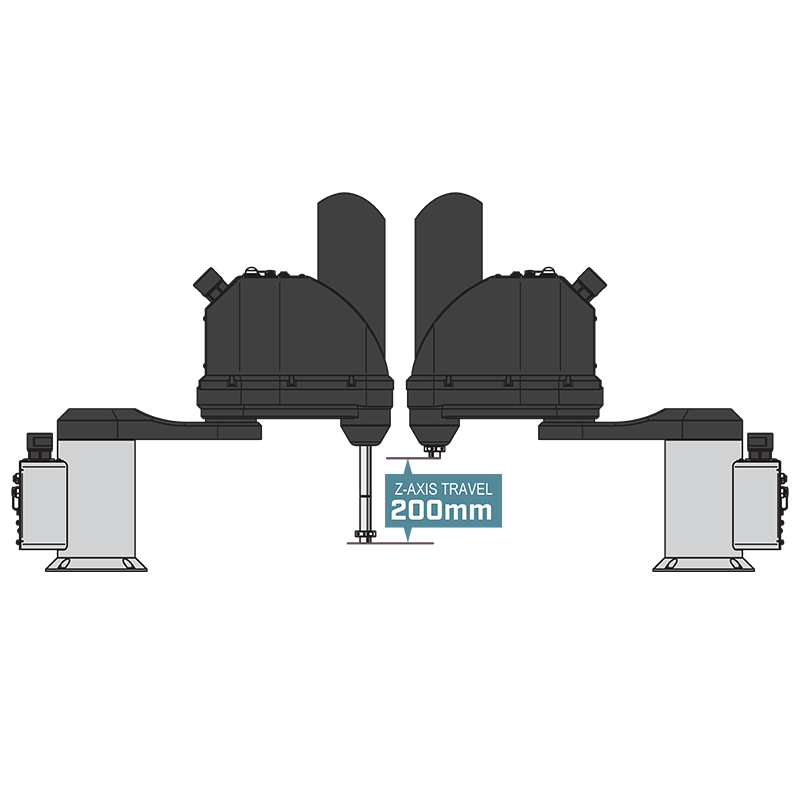

Z - 200 mm
J1 - ±120 deg
J2 - ±120 deg
J3 - ±180 deg
Performance Max
Max Acceleration - 2 m/s²
Max Speed - 1 m/s
Max Payload - 3 kg*
(*including gripper)
Repeatability
± 50 μm
Air source (Optional)
0.05 to 0.35 MPa
Input Voltage Range
100-240VAC
Operating Temperature
50ºF to 104ºF
10ºC to 40ºC
Encoder Type
Absolute
battery backup

Sim Automation’s four-axis SCARA robot, is an elegant solution for repetitive pick-and-place tasks in “lights out” factories and laboratory environments. Our robot is used in applications such as small parts handling and consumer electronics testing.

The robot’s structural design is also compatible with tabletop applications. The controller and harnessing are embedded within the robot’s structure, eliminating external component installations.

Additionally, our intuitive interface is built in directly in the robot controller, requiring only a PC or tablet with WiFi and a web browser to operate the robot.
